Description

Single FPD

Model: SHO-UDX01 System

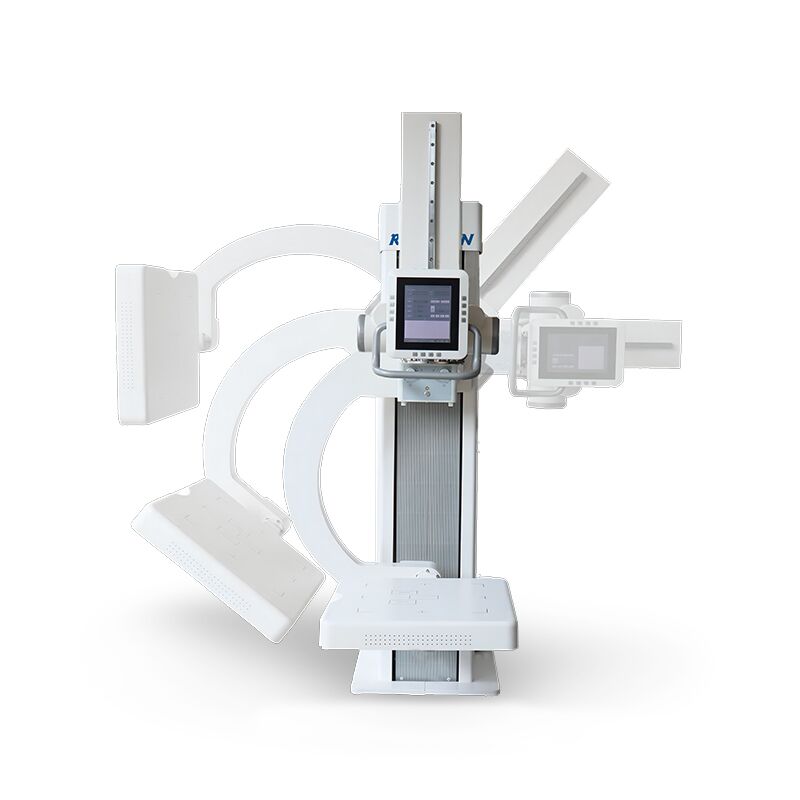

SHO-UDX01 U-arm Digital Radiography X-ray System

Introduction of Single FPD

Single FPD is a versatile radiography device with an easy-to-use design for routine examinations. It allows you to practice all types of exams in a standing, sitting or lying down position.
The system features a safe and reliable U-arm design for enhanced functionality. Its flexible U-arm allows for a wide range of diagnostic procedures, from table to chest examinations. The Flat Panel Detector ensures the finest image resolution for accurate diagnostics. User-friendly operations streamline workflow and improve efficiency. This advanced setup is designed to meet diverse imaging needs with precision and ease.

Specifications:
X-ray Generator

Model SHO-UDX01 Series
Output power 32kw 50kw 65kw 80kw
Current 10-400mA 10-630mA 10-800mA 10-1000mA
Voltage 40kv-150kv 40kv-150kv 40kv-150kv 40kv-150kv
mAs 0.1-400mAs 0.1-630mAs 0.1-800mAs 0.1-1000mAs
Exposure time 1ms～6300ms
Focus size 1.0/2.0 0.6/1.2 0.6/1.2 0.6/1.2
APR program Equipped
Intelligent protection system It has self-protection system. It will give an alarm and check fault code.

X-ray Tube

Anode type Rotating Anode
Focal Spot value 0.6mm /1.2mm
Maximum voltage 150KV
Revolving speed of anode 2800rpm
Inherent filtration 1.0mmAl
Anode heat storage capacity 300kHU
Maximum cooling rate of anode 870W
Housing heat storage capacity 900kJ

X-ray detector (Iray brand Flat Panel Detector)

Type Amorphous Silicon
Scintillator Cesium Iodide
Active Area 17x17Inch(43cm*43cm)
Active Pixel 3072*3072
Pixel Pitch 139um
A/D Conversion 16bits
DQE ≧70%
Spatial Resolution 36Lp/cm
Acquisition time ≤2S

Collimator

Type Manual Collimator
Max. Window 440mm×440mm（SID=100cm）
Lamp AC/DC24V、5W
Lamp timer Automatic illumination with timer for lamp(30S)
Inherent filtration 1.0mmAl
Illuminant LED

Grid
Densities 40LP/CM
Ratios 10:1
Size 18”×18”
Focal distance 130cm

Movement
Tube stand
U Arm rotation range -15°～＋105°
U Arm vertical travel 1200mm
SID range 1000mm～1800mm
Detector rotation range ±45°
Mechanism control 9.7’’ touch screen&remote controller

Workstation
Monitor 24’’ LCD AOC brand
CPU ≥2.0GHz
Memory ≥2GB
HDD ≥500GB
DICOM3.0 Query for integration with any PACS
Functions Import/export function
Image info
Management of patient info
Post processing
Measurement etc.
