Mammography

Description

Digital Mammograpy System （5KW,200MA)

Model: SHO-DMS01

Product Introduction

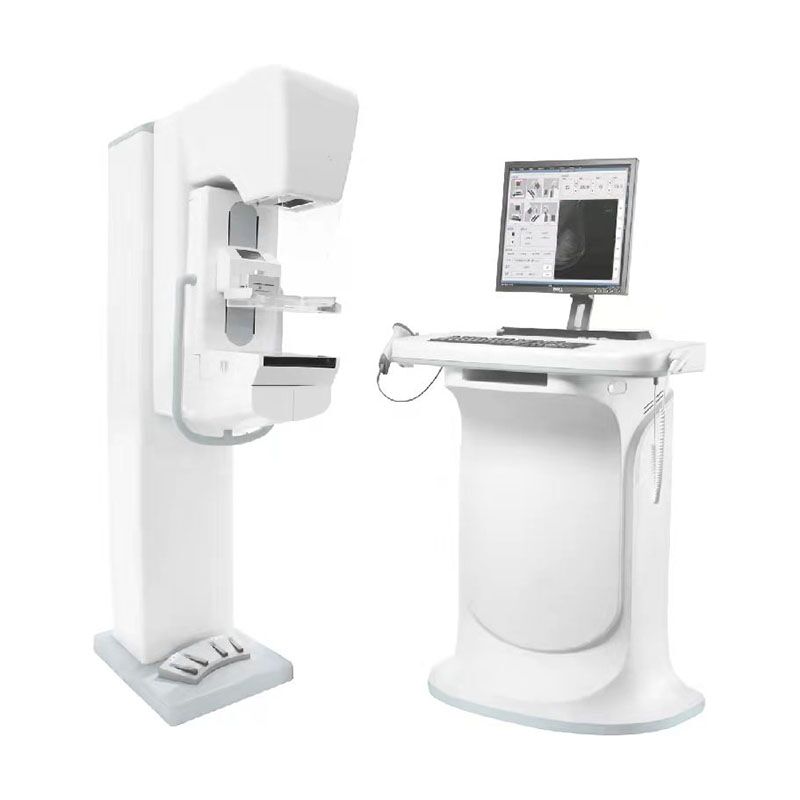

SHO-DMS01 Digital Mammography X-ray
System
Introduction
Digital Mammography System is a professional equipment for breast diseases examination. It is suitable for early detection of mammary gland lesions.
This system adopts the latest technology of flat panel detector, which has a higher sensitivity to X-ray. Its resolution reaches the value of 60lp/cm. It can easily examine calcified lesion less than 0.1mm. By improving the accuracy and sensitivity of mammography diagnosis, it becomes a reliable tool to diagnose early stage of breast cancer.

Features
◆Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
◆Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
◆Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.
◆Self R&D ‘Console’ software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.

Specifications
Ambient Conditions
Ambient temperature 10℃～40℃
Relative humidity 30％～75％
Atmospheric 70～106kPa

X-ray Generator
Output power 5.0KW
Frequency 80-200KHZ
Current 10-200mA
Voltage 20-50KV
Exposure time 5-10000s
mAs 0.5mAs-600mAs
Self-diagnostic system Tube overload protection

X-ray Tube
Brand IAE (Italy)
Anode type Rotating Anode
Focal spot value 0.1mm /0.3mm
Maximum voltage 40KV
Anode heat storage capacity 300KHU
House heat storage capacity 426KHU
Target material Molybdenum
Anode rotation speed 10000rpm
Maximum anode heat dissipation rate 500W

X-ray detector( Iray brand Flat Panel Detector)
Scintillator Cesium Iodide
Active area 235*290mm
Active pixel 2762*3408
Pixel pitch 85um
AD Conversion(bit) 16
Spatial resolution 60Lp/cm

Mechanical Device
SID 650mm
Exposure field 240mm*300mm(Maximum)
Up-down movement of c-arm ≥600mm
Rotational angles of c-arm -90°～+90°(Electromagnetic lock)
Rotational angles of tube -30°～+30°

Compression Paddle
Movement type Electric
Up-down movement range ≥210mm
Size of compression paddle 260mm*180mm
Pressure range 0～20kg (0.1kg step)

Workstation
Monitor 24’’ LCD AOC brand
CPU ≥2.0GHz
Memory ≥2GB
HDD ≥500GB
DICOM3.0 Query for integration with any PACS
Functions Import/export function
Image info
Management of patient info
Post processing
Measurement etc.
